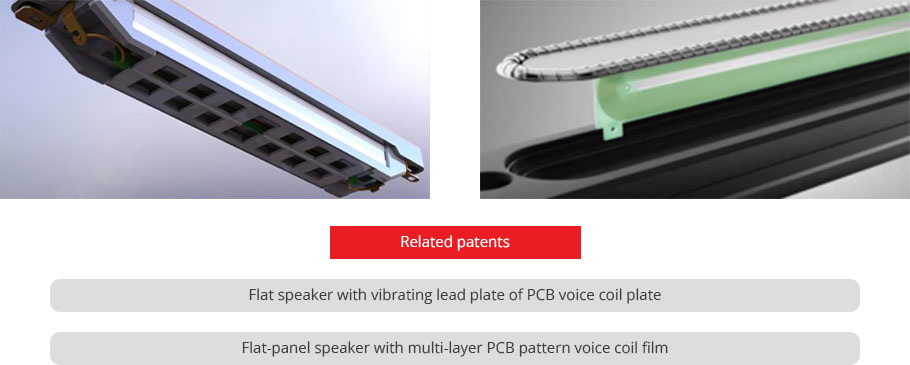

Voice coil laminated structure with PCB Pattern technology applied.
Wider bandwidth and increased reliability.
No frequency overlay.
Unbalance and split vibration suppression through horizontal expansion structure
Uniform vibration force spread over the entire area (vibration) and stabilization of characteristics.
Structure that allows the implementation of ultra-small, ultra-large, and ultra-rectangular speakers.
Clear midrange and refined treble.
Multiple VPCB Module Array Applicable Structure.
Suitable for small volume box design.

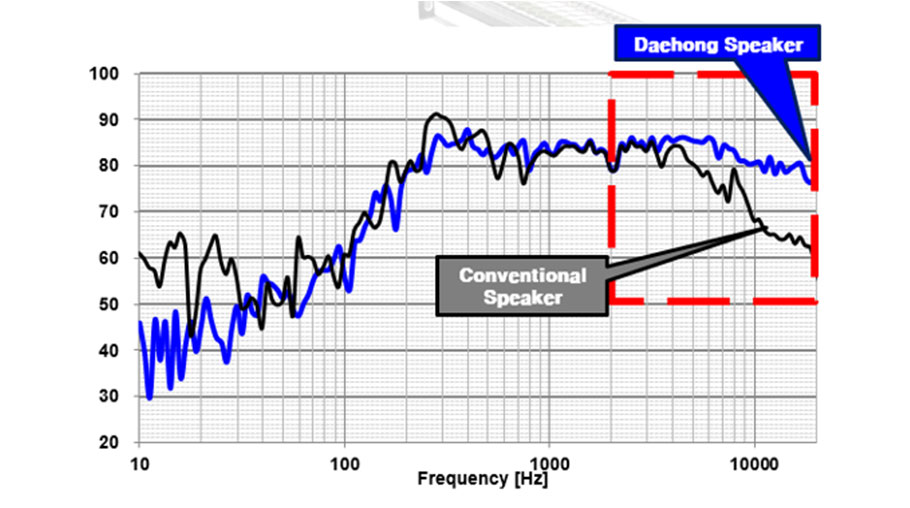

Functional Features - Sound
The mid and high frequency characteristics are flat, and the acoustic inductance level is low,
so there is little acoustic loss (clear and clear voice transmission)

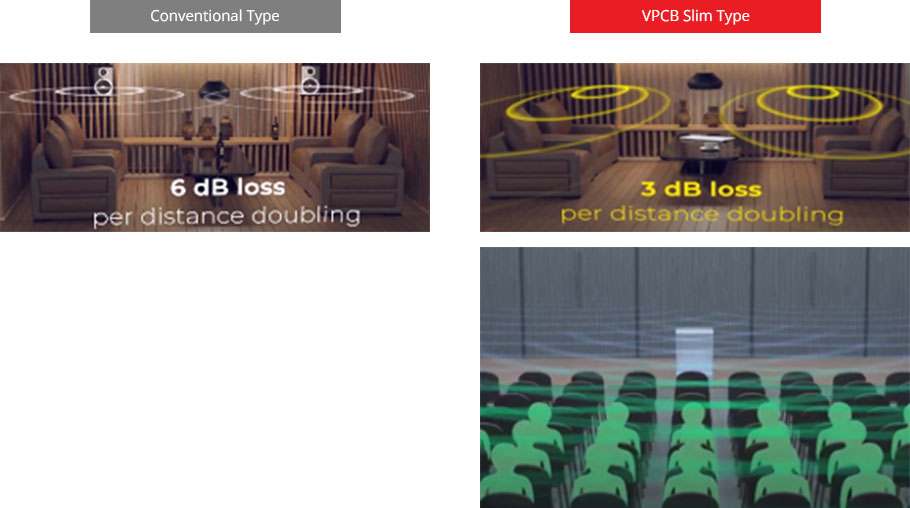

Excellent sound localization (direction distance of sound source) Very good directivity
(straightness)

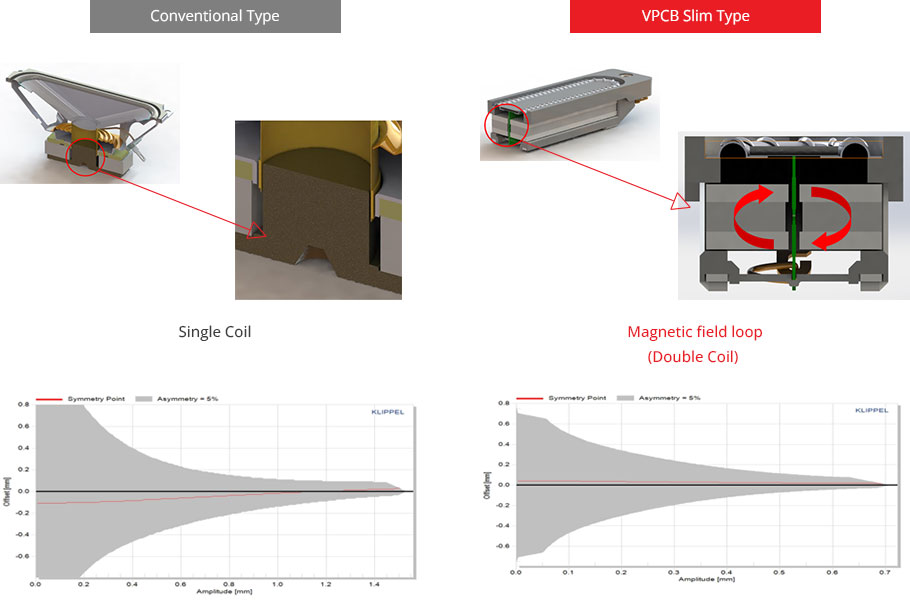

Functional Features - Magnetic Force
Due to the magnetic circuit configuration, the coil pattern is formed in the upper and lower parts,
so that the magnetic field loop is formed evenly (conventional speaker generates a large force in
only one direction)

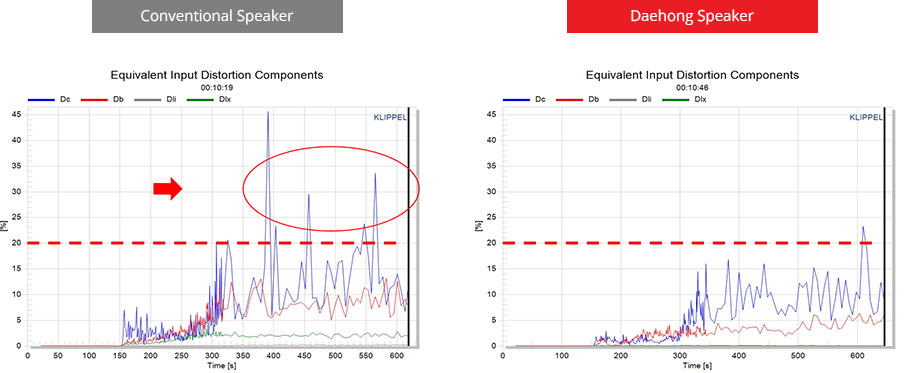

Functional Features - Distortion
Vibration by forming a uniformly distributed magnetic field, excellent linearity reduction of distortion by frequency

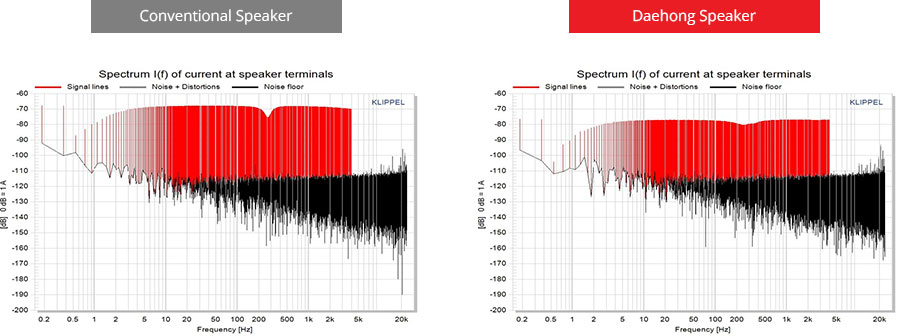

Functional Features - Clean Sound
It shows comparative advantage through spectrum for clean sound quality even when overamplified input signal before actual listening
¡Ø Technical point: A measure of clean sound quality _ Spectrum by current
